Filter ZBF13-D2100-0-2889
In Stock 26
Passband2100MHz, DC-2GHz≥70dBc, 2.2-4GHz≥70dBc, Pin
$ 50
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating; The price is competitive, product fully tested and qualified, we will offer certificate of conformity, no test report.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Main specifications
| Parameters | Frequency | / | Min | Typical | Max | Units |
| Passband | / | / | 2100 | MHz | ||
| Passband IL | / | / | 4.5 | dB | ||
| Ripple | / | / | dB | |||
| Rejection | DC-2 | GHz≥ | 70 | dBc | ||
| Rejection | 2.2-4 | GHz≥ | 70 | dBc | ||
| Passband VSWR | / | / | 1.50 | |||
| Return loss | / | / | dB |
Other parameters
| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |

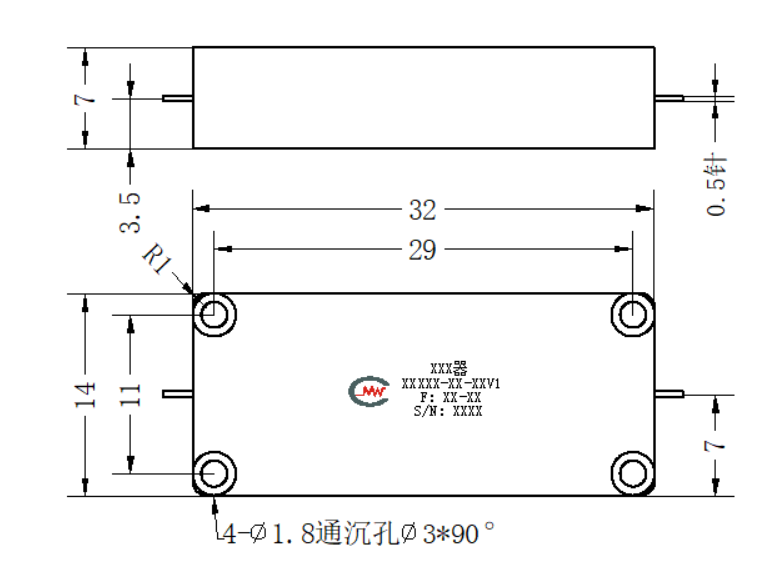

Configuration(mm)

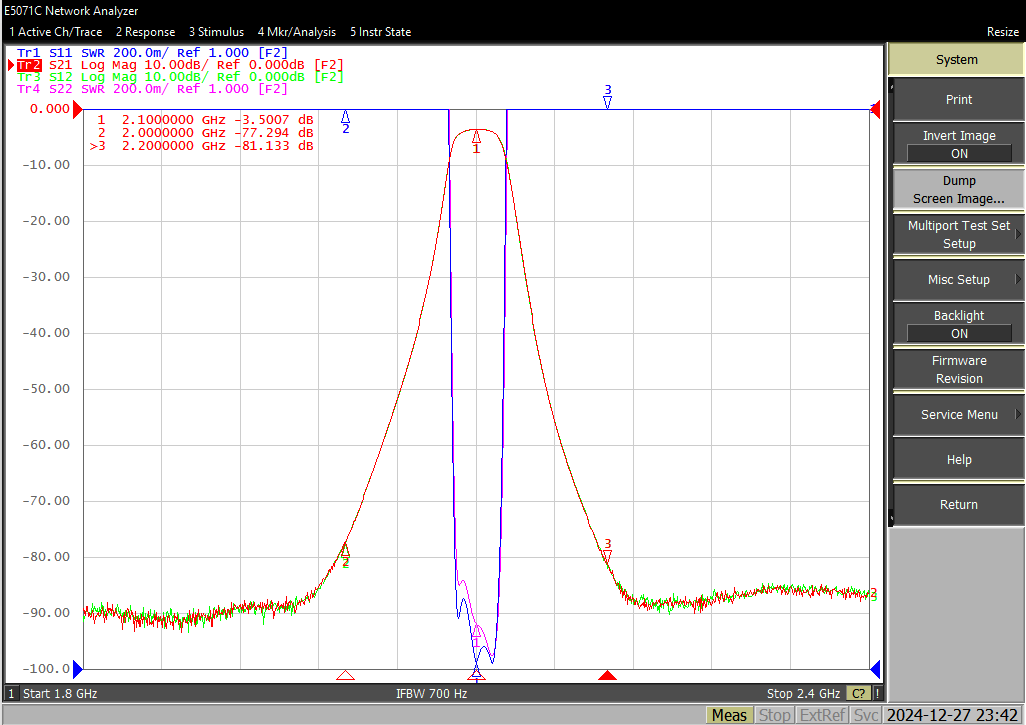

Typical test curve
Note
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
