Frequency-splitting filter CE0004
In Stock 2
Working frequency LDC-2.35GHz, Working frequency H2.65-18.5GHz
$ 414.29
Delivery Time ： 1-3 Day(WorkDay)
Terms: Ex Work from Chengdu,China warehouse, minimum order amount US$200. Keeping registered and logged in, check discounts by adding to cart
MOQ : 1
Attention: The online trading belongs to commercial activities, the final transaction price might be lower than tag price, subject to automatically system calculating.
- Contact Us
- Cynthia
- cynthia@com-mw.com
sales@com-mw.com
+86 19938031308- 23 floor, No. 1 building, P Jiuxi Plaza, No.37, Jiancai Road, Chenghua Zone, Chengdu
Characteristics and Application
High performance, ultra bandwidth
Low loss, high isolation
Small size, excellent performance
Customizable according to requirements
Main specifications
| Items | Parameters | Units |
| Working frequency L | DC-2.35 | GHz |
| Working frequency H | 2.65-18.5 | GHz |
| Crossover frequency | 2.5 | GHz |
| Cross frequency loss | <6.0 | dB |
| IL | <1.5 | dB |
| Ripple | <1.5 | dB |
| VSWR | <2.0:1 | |
| Reverse isolation | >6.0 | dBc |
| Rejection L | >25@2.65-2.9GHz | dBc |
| Rejection L | >65@2.9-18.5GHz | dBc |
| Rejection H | >60@DC-2.0GHz | dBc |
| Rejection H | >20@2.0-2.35GHz | dBc |
其它参数:设计保证
| Port form | SMA-K |
| surface treatment | Black paint |
| power | 5W CW |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ |

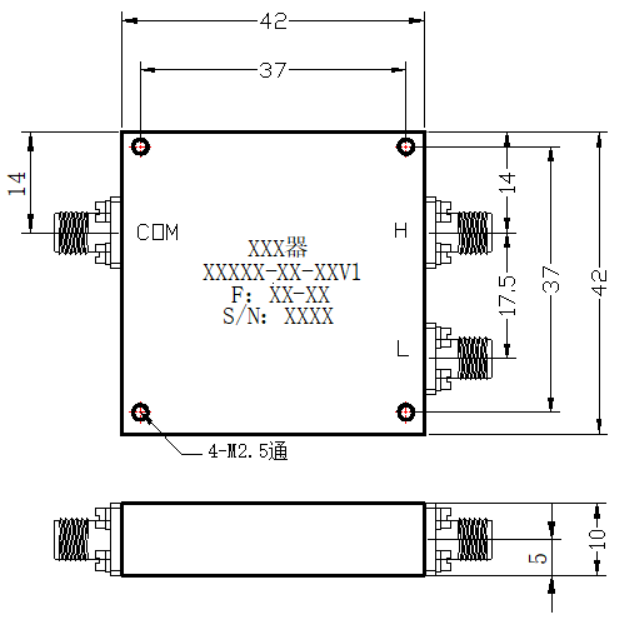

Outline drawing: tolerance not specified+/-0.3mm
Note
/
2: Good grounding of products and systems to reduce electromagnetic interference and signal reflection;
/
/

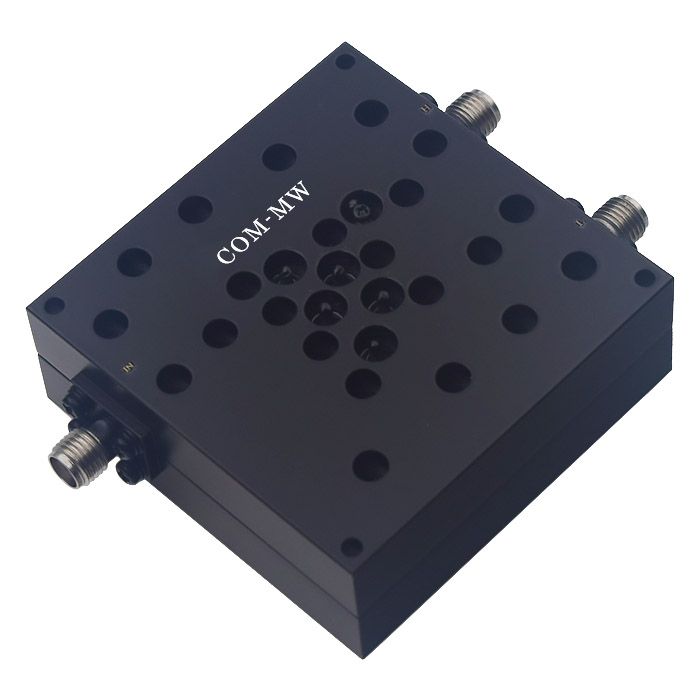

Reference picture

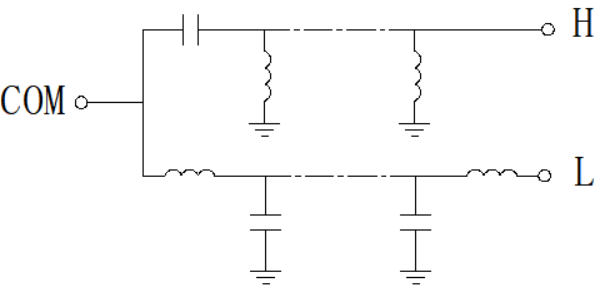

Schematic diagram

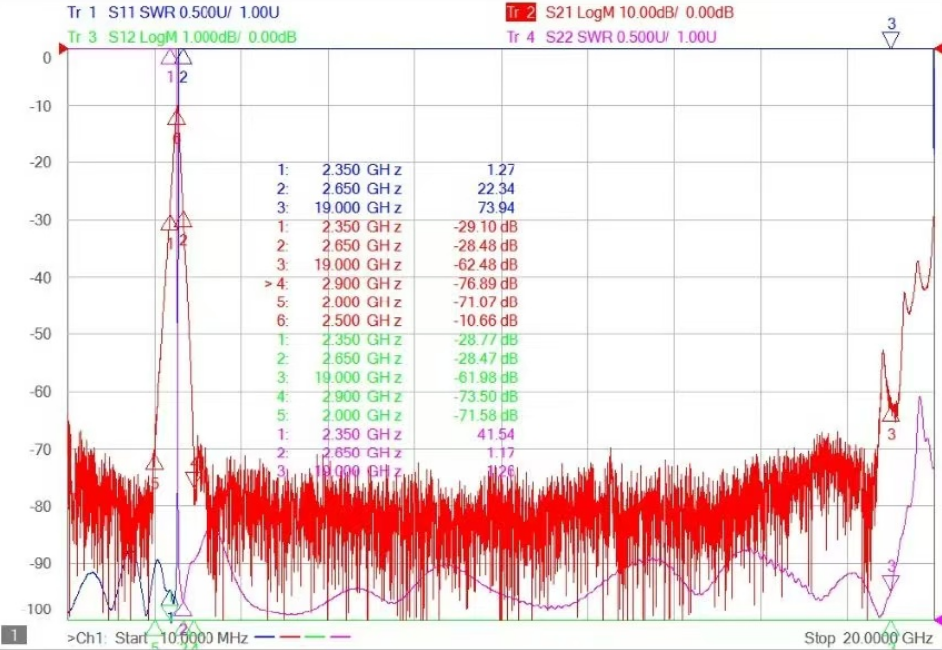

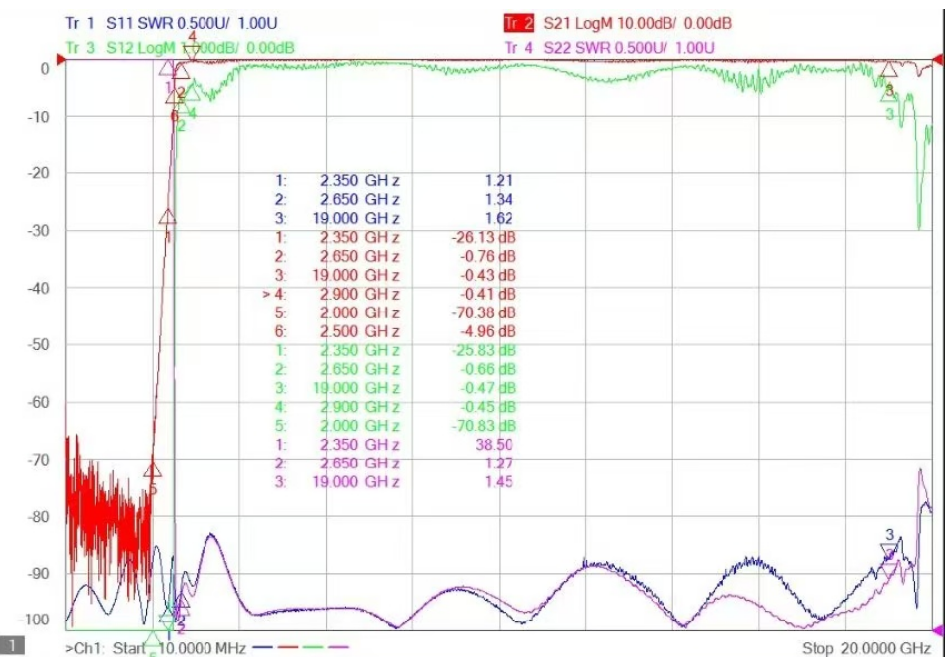

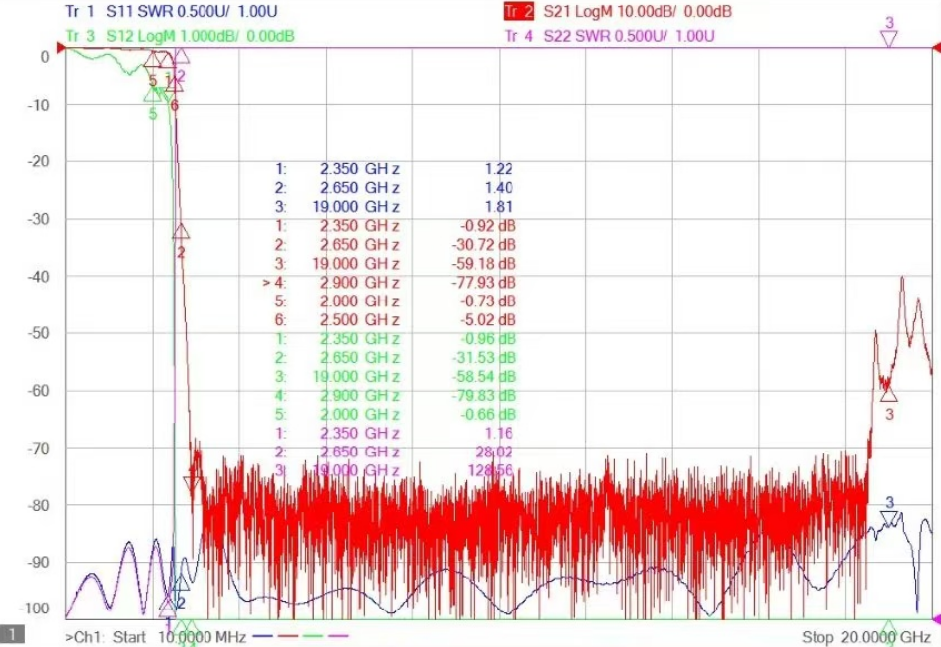

Typical test curve
